HPI Racing Venture18 U4 Flux Ford Bronco 4400 – Loren Healy

The Flux of Adventure Starts Here.
Answer the call of extreme terrain with the HPI Racing Venture18 U4 Flux Ford Bronco 4400 – Loren Healy Edition, the upgraded brushless-powered version of HPI’s compact trail crawler. Inspired by the world of Ultra4 racing, the Flux edition raises the bar with a powerful 12-pole high-torque brushless motor and 30A ESC, offering faster acceleration, increased climbing torque, and greater efficiency over the standard brushed version.

Built on the acclaimed Venture18 platform, this 1/18 scale rock crawler features a rugged steel C-channel chassis, servo-operated 2-speed transmission, fully locked differentials, and high-articulation 4-link suspension. Whether you're bashing through rocky trails or navigating tight technical lines, the Flux delivers superior trail-conquering performance.

The officially licensed Ford Bronco 4400 body comes factory-painted in Loren Healy's iconic desert race livery, with a molded roll cage, LED light bar, and clipless body mount system. Packed with scale realism and real performance, the Venture18 U4 Flux is fully Ready-To-Run with a LiPo battery and USB charger.

If you want more torque, more speed, and more capability from your trail rig – the Flux version is your ultimate upgrade.



What’s New in the Flux Edition?

Compared to the standard Venture18 U4, the Flux version includes these significant upgrades:

• Brushless Power System:

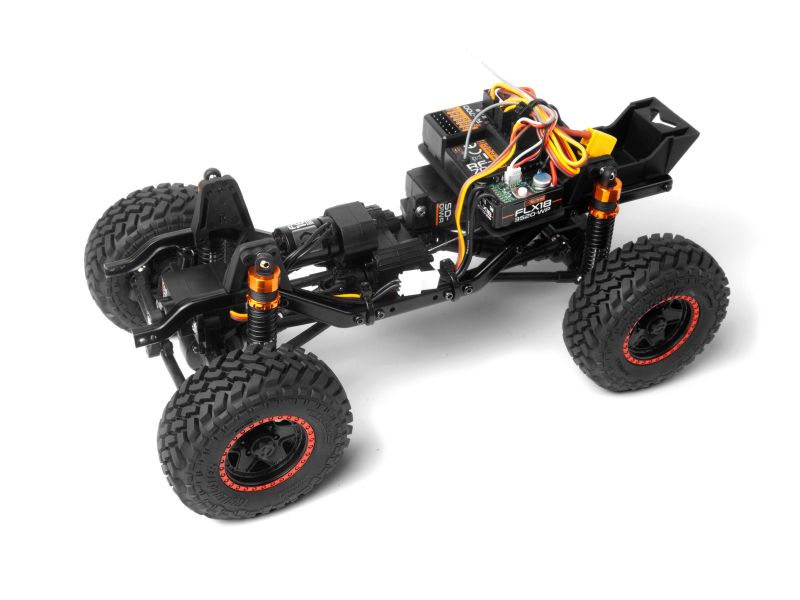

  Powered by the FLX-1621-3500KV 12-pole brushless outrunner motor and paired with a FLX18-2S30-T 30A electronic speed control (ESC), the Flux version delivers significantly more torque, improved throttle response, and higher speeds than the brushed version.
• Increased Durability:
  Built to handle the added power, the Flux comes equipped with a robust all-metal drivetrain and universal telescopic driveshafts for long-lasting trail performance.
• Improved Efficiency & Runtime:
  The brushless system offers higher efficiency, generating more power from the same LiPo battery for extended trail adventures.

Features

• Factory-assembled 1/18 scale 4WD electric off-road crawler

• Upgraded FLUX brushless power system for superior performance

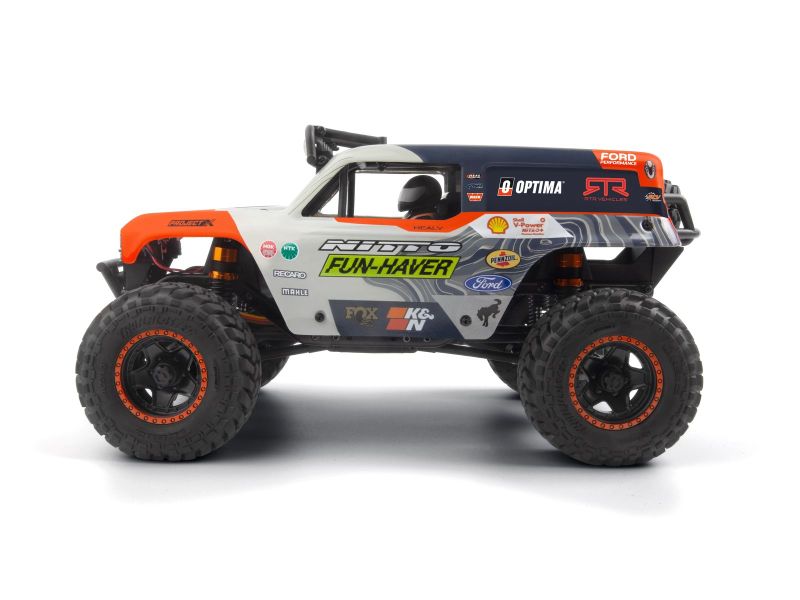

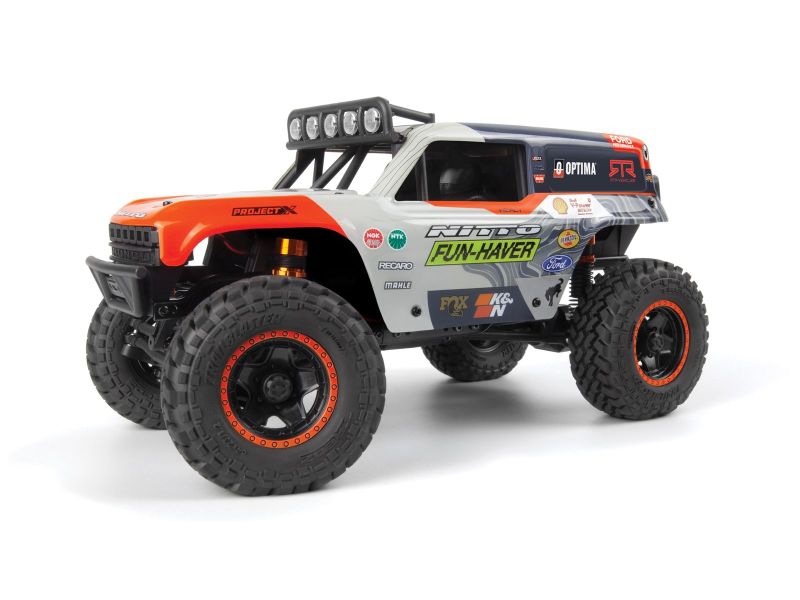

• Officially licensed Ford Bronco 4400 body with hand-detailed Loren Healy race livery

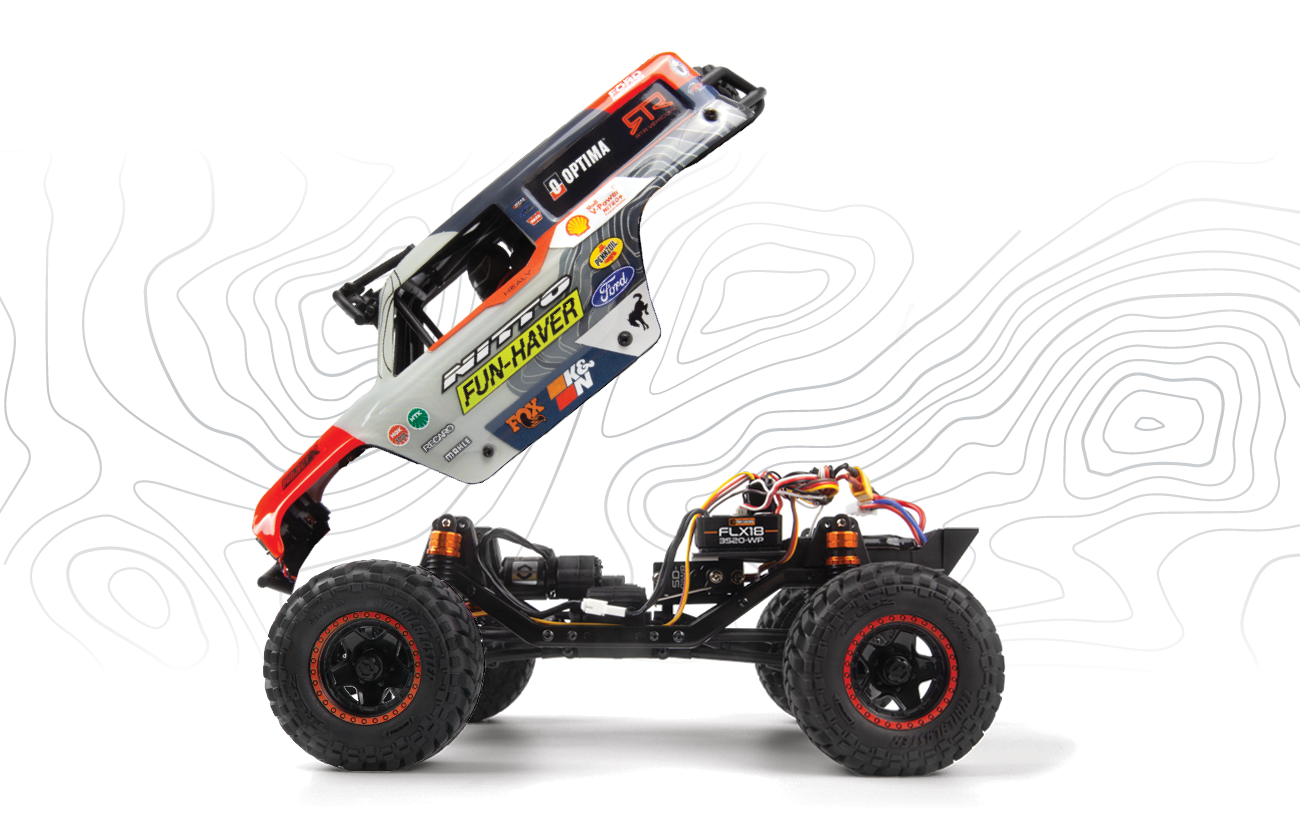

• Pre-painted clipless polycarbonate body with molded roll cage and interior

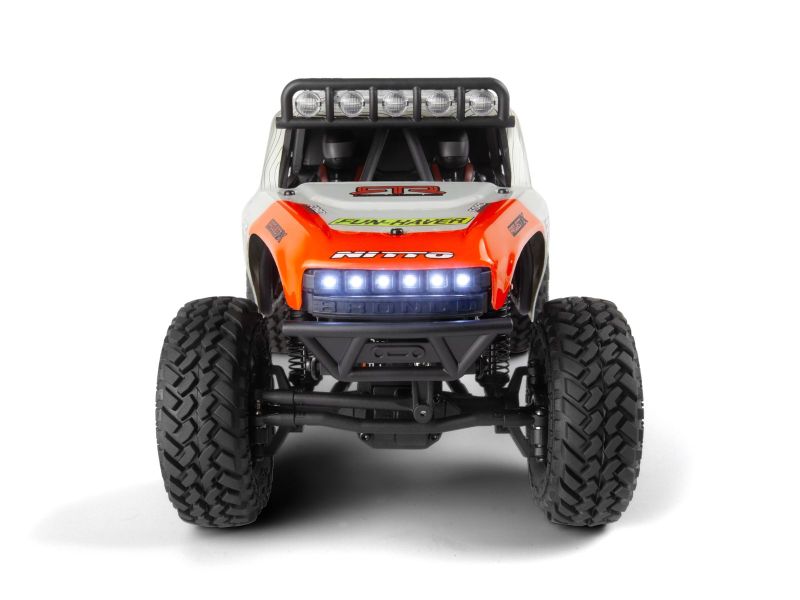

• Integrated LED light bar and realistic front bumper design

• Formed steel C-channel chassis rails for extreme durability

• Servo-operated 2-speed transmission for low-end torque or high-speed trail runs

• All-metal gear drivetrain designed for brushless power output

• Universal telescopic driveshafts to front and rear axles

• Low-profile “pumpkin” differentials for improved ground clearance

• Locked differentials for superior climbing traction

• 4-link suspension system front and rear for articulation and control

• Oil-filled aluminum coilover shocks with threaded bodies for quick ride height adjustments

• Shock towers with multiple mounting positions for tuning suspension geometry 20° caster and 45° steering angle for excellent trail maneuverability

• Axle-Mounted Servo (AMS) steering layout

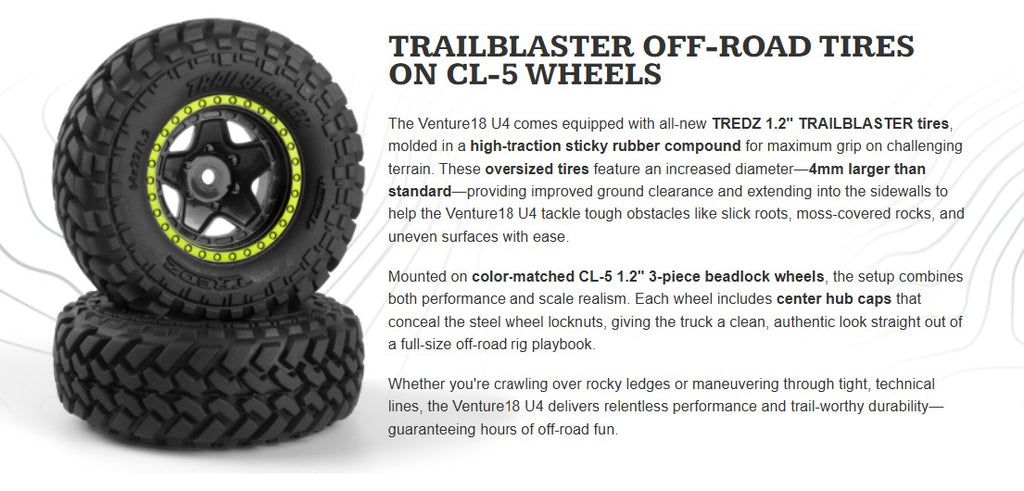

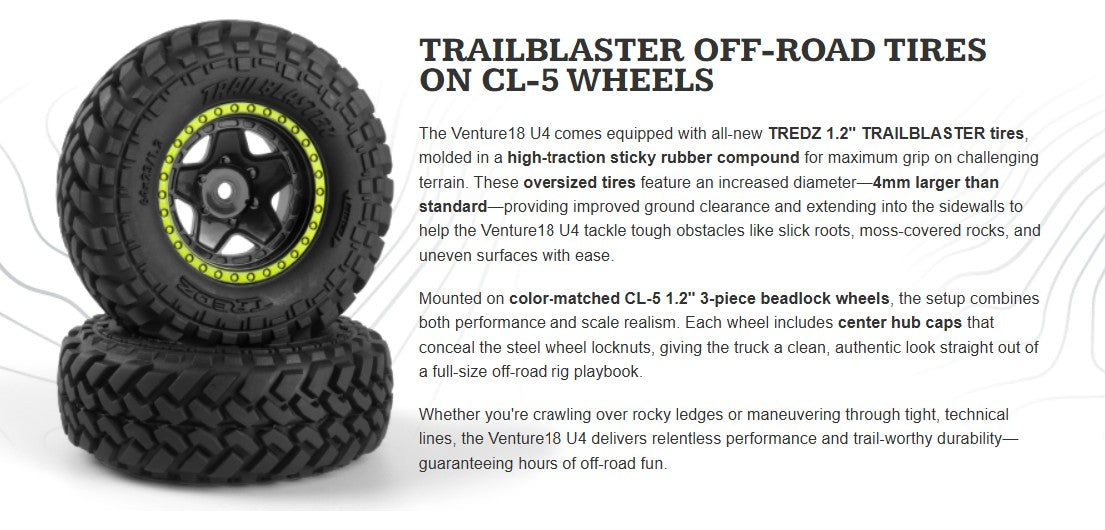

• S-Compound TRAILBLASTER 1.2" tires with deep-tread blocks

• Beadlock-style CL-5 wheels color-matched to the vehicle’s livery

• HPI FLX-1621-3500kv brushless motor

• HPI FLX18-2S30-T 30A ESC (brushless electronic speed control)

• Water-resistant HPI SD-02MGWR metal gear steering servo

• HPI TF-706 2.4GHz radio system with thumbstick transmitter

• Includes 600mAh 7.4V LiPo battery and USB balance charger

• Requires only 4x AA batteries for transmitter

Specifications

• Dimensions
  Length: 238mm
  Width: 127mm
  Height: 119mm (with rollbar lights)
  Wheelbase: 155.4mm
• Weight
  Running Weight: 0.50kg
  Weight Without Battery: 0.47kg
• Performance Metrics
  Break-over Angle: 55°
  Approach Angle: 79.8°
  Departure Angle: 77.3°
  Max Climb Angle: 52°
  Max Tilt Angle: 41°
  Axle Articulation: 29.7°
  Ground Clearance: 30.4mm
  Axle Ground Clearance: 20mm
• Gearing
  Transmission Gears:
  Low – 81.44:1
  High – 20.36:1
  Axle Gearing: 2.54:1

Box Contents

• HPI Venture18 U4 Flux Ford Bronco 4400 – Loren Healy RTR

• 2.4GHz TF-706 Transmitter

• 600mAh 7.4V LiPo Battery

• USB Balance Charger

• Instruction Manual

What You Need

• 4x AA Batteries for Transmitter

• Optional: LiPo Charging Safety Case
