HPI Racing Venture18 U4 Flux Ford Bronco 4400 – VGJR Edition

Built for the Wild. Tuned for Performance.
Unleash the full potential of your off-road passion with the HPI Racing Venture18 U4 Flux Ford Bronco 4400 – Vaughn Gittin Jr. Edition, a 1/18 scale brushless trail crawler inspired by the high-octane world of Ultra4 desert racing. Based on the battle-proven Venture18 platform and infused with the power of the Flux brushless system, this compact crawler is designed to dominate the trail with scale realism, premium components, and aggressive performance.

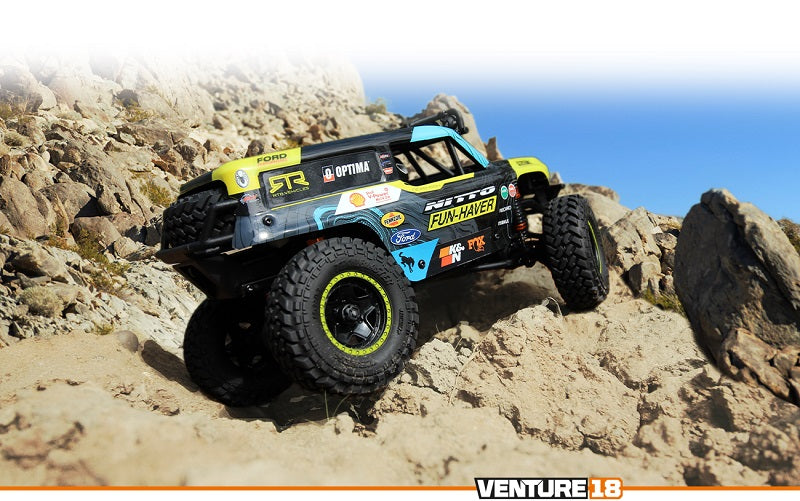

Whether you’re crawling rocky terrain, navigating steep inclines, or conquering backyard obstacles, the Flux Bronco 4400 delivers full-scale capability in a go-anywhere package. Its rugged formed steel chassis, all-metal drivetrain, and adjustable 4-link suspension system provide unbeatable traction and articulation, while the servo-operated 2-speed transmission gives you the flexibility of high-speed trail runs or low-speed technical climbs.

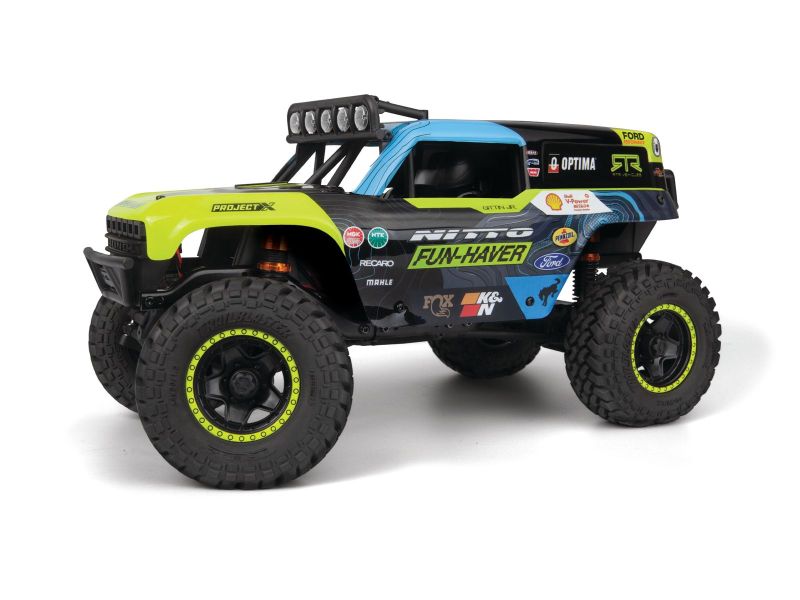

Featuring an officially licensed Ford Bronco 4400 body in Vaughn Gittin Jr.'s signature race livery, the Venture18 U4 Flux stands out with molded roll cage detail, clipless mounting, LED light bar, and scale interior. The brushless power system, advanced electronics, and Ready-to-Run setup with LiPo battery and charger make it easy to hit the trail right out of the box.

This isn’t just a model. It’s a trail-ready machine built for performance and styled for victory.

What Sets the Flux Edition Apart?

Compared to the brushed version, the Venture18 U4 Flux offers significant performance enhancements:

• Brushless Power Upgrade
  Includes the FLX-1621-3500KV 12-pole brushless outrunner motor and FLX18-2S30-T 30A ESC, delivering increased torque, faster acceleration, and improved efficiency.
• Optimized Durability
  A reinforced all-metal drivetrain and high-performance suspension components handle the extra power for rugged trail action.
• Better Control and Runtime
  The brushless system improves battery efficiency and throttle responsiveness for longer, smoother runs.

Features

• Factory-assembled and pre-painted electric-powered full-time 4WD 1/18 scale off-road truck

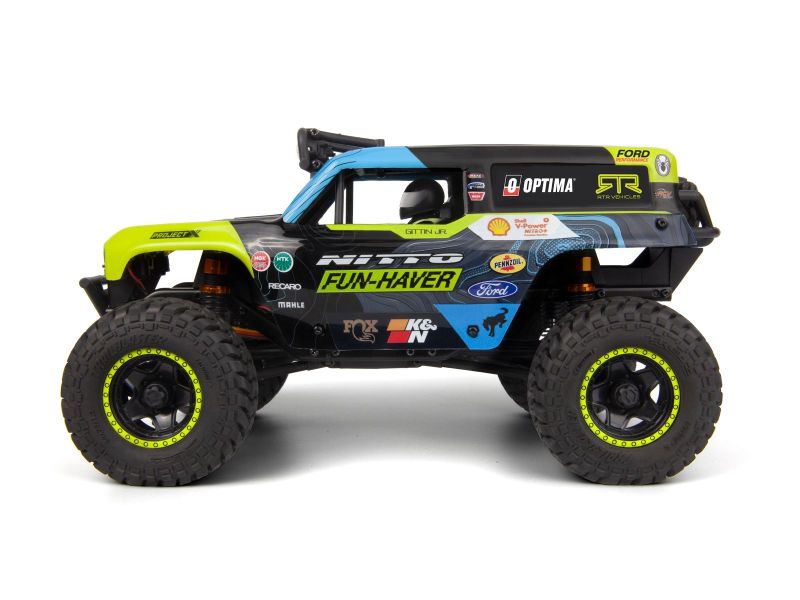

• Printed and hand-finished officially licensed Ford Bronco 4400 body in VGJR desert race livery

• Molded scale details including LED light bar, front grille, spare tire, and interior

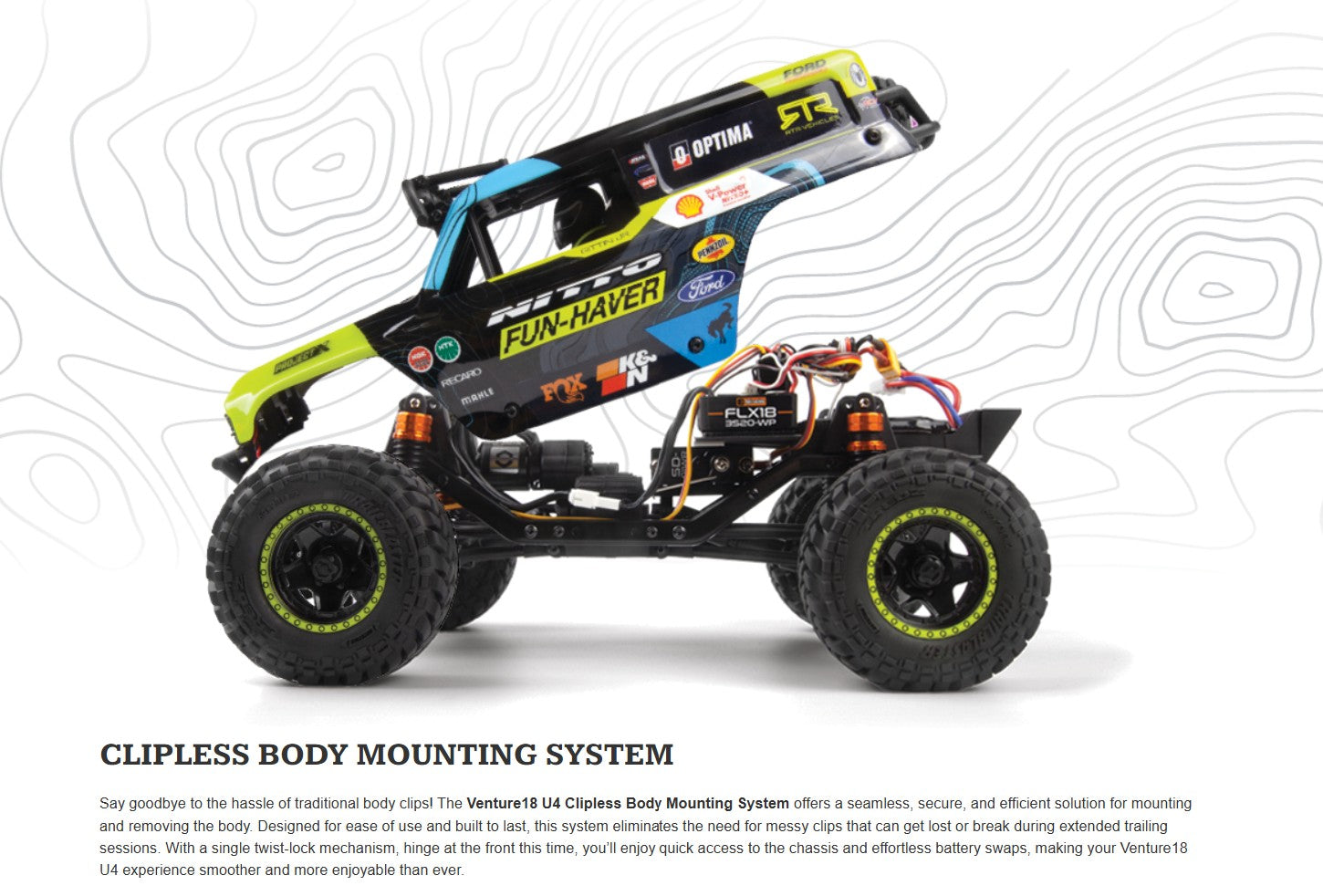

• Clipless polycarbonate body mounting for easy battery access

• Servo-operated 2-speed transmission for versatile terrain control

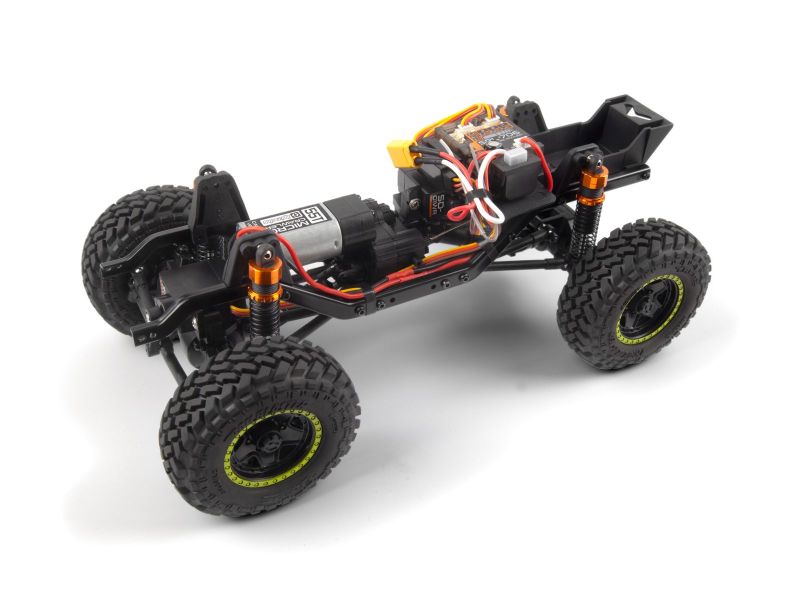

• Steel C-channel chassis rails for rugged strength and scale realism

• All-metal gear drivetrain for extreme durability under high load

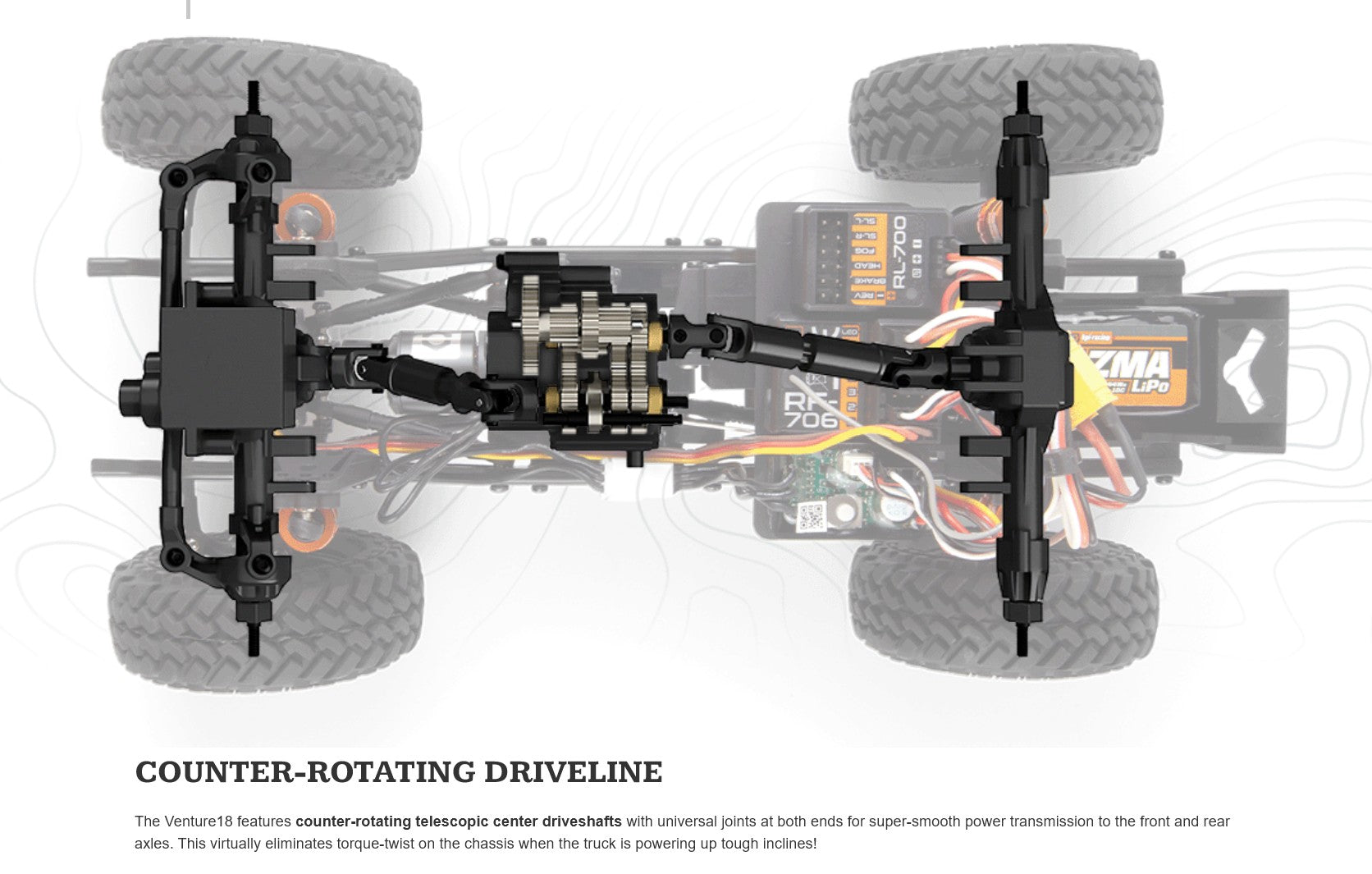

• Telescopic universal driveshafts to front and rear axles

• Compact differential housings for maximum ground clearance

• Locked differentials for superior rock-crawling traction

• Shock towers with multiple mounting options for fine-tuning suspension geometry

• 4-link suspension system front and rear for balanced articulation

• Oil-filled aluminum-capped coilover shock absorbers

• Threaded shock bodies for easy ride height adjustments

• Axle Mounted Servo (AMS) configuration

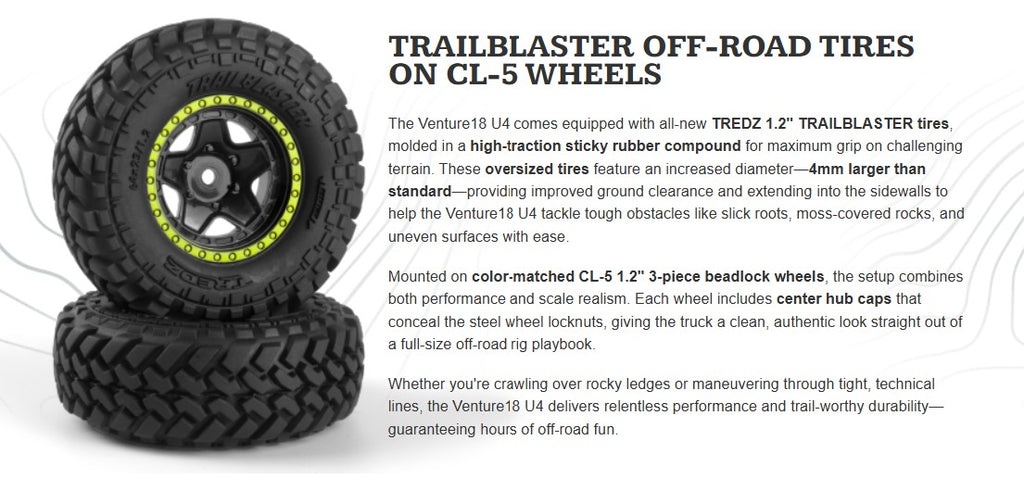

• All-terrain TRAILBLASTER 1.2" soft S-Compound tires with aggressive tread

• Beadlock-style CL-5 1.2" wheels color-matched to livery

• High-performance FLX-1621-3500kv brushless motor

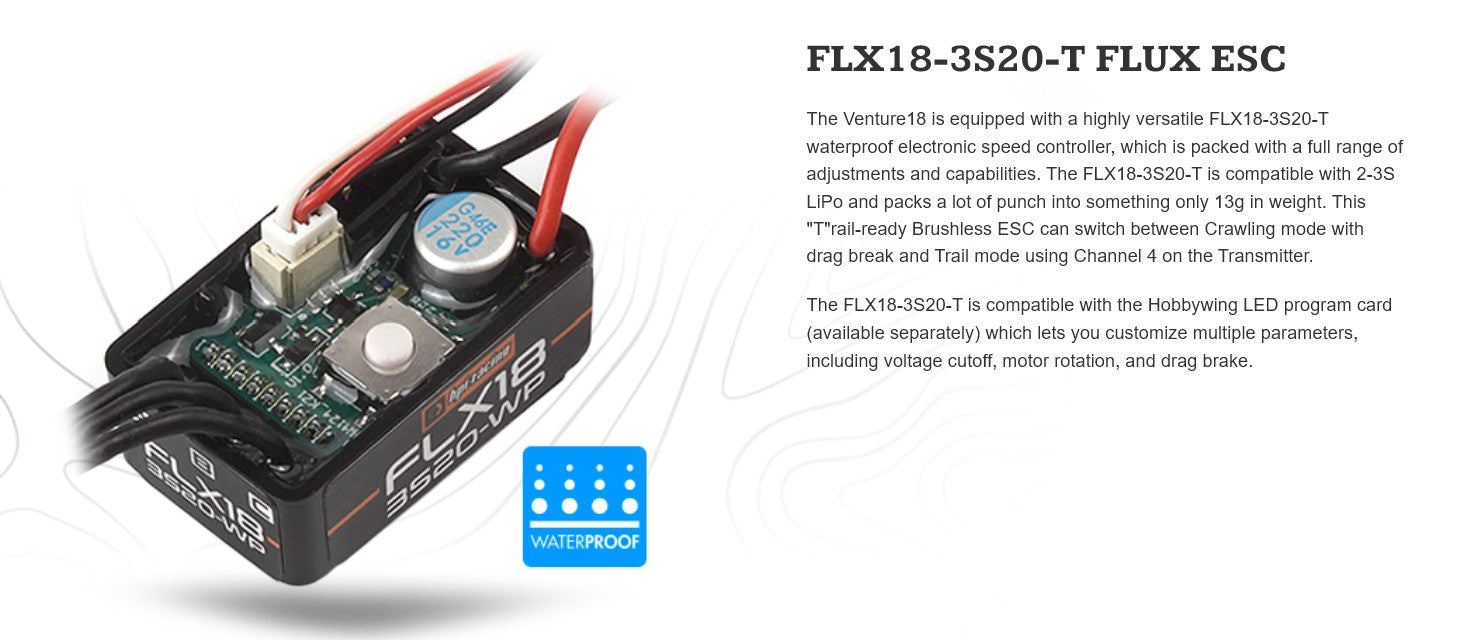

• Reliable FLX18-2S30-T 30A electronic speed control (ESC)

• Water-resistant SD-02MGWR metal gear steering servo

• TF-706 2.4GHz thumbstick radio system for precise trail control

• Includes 7.4V 600mAh LiPo battery and USB balance charger

• Requires only 4x AA batteries for transmitter

Specifications

• Dimensions
  Length: 238mm
  Width: 127mm
  Height: 119mm (with rollbar lights)
  Wheelbase: 155.4mm
• Weight
  Running Weight: 0.50kg
  Weight Without Battery: 0.47kg

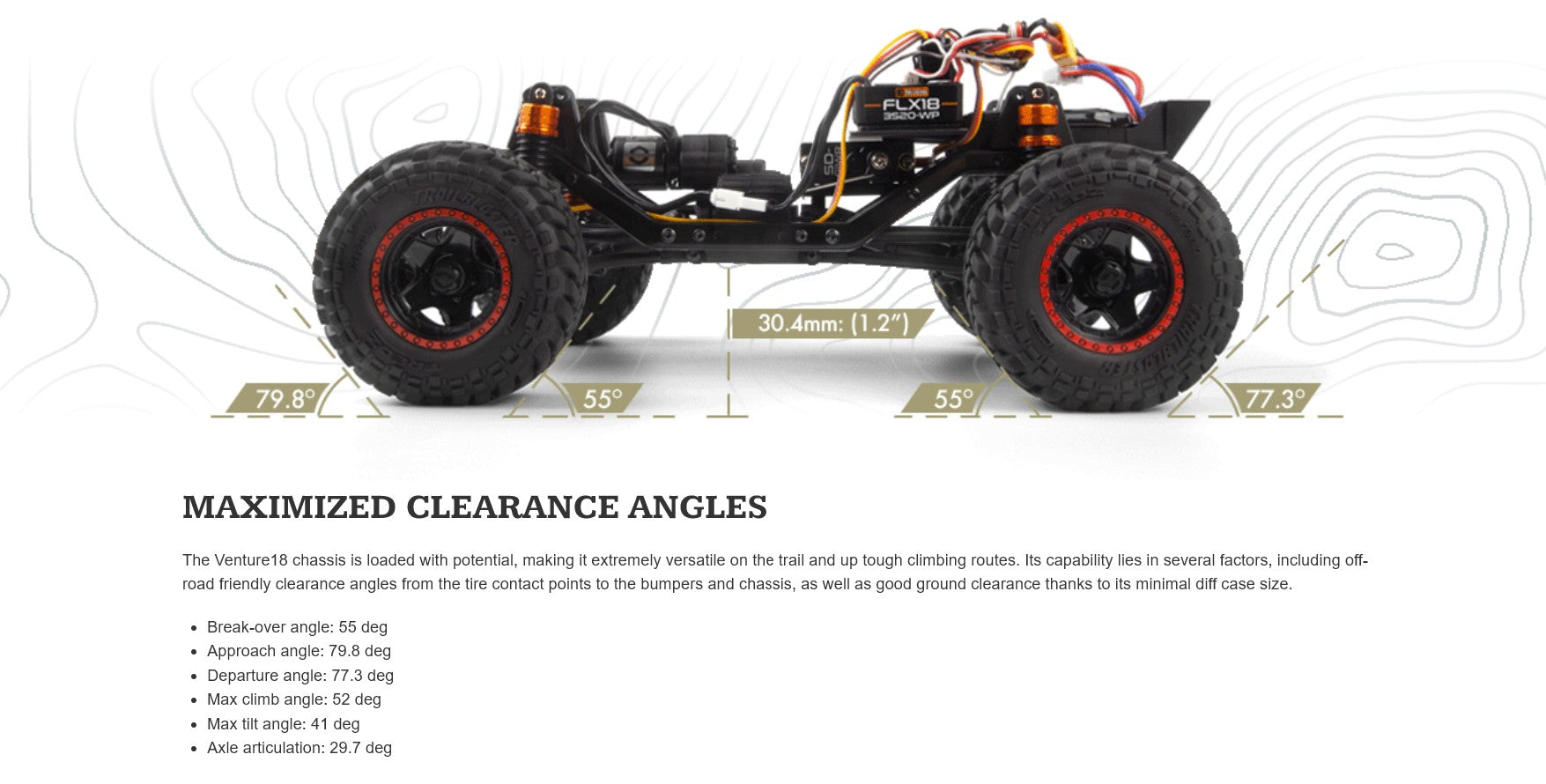

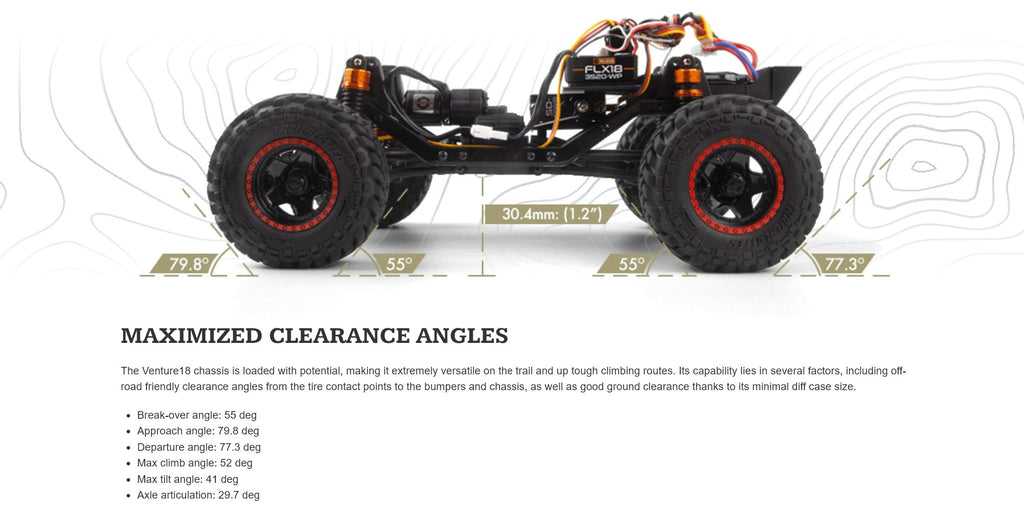

• Performance Metrics
  Break-over Angle: 55°
  Approach Angle: 79.8°
  Departure Angle: 77.3°
  Max Climb Angle: 52°
  Max Tilt Angle: 41°
  Axle Articulation: 29.7°
  Ground Clearance: 30.4mm
  Axle Ground Clearance: 20mm
• Gearing
  Transmission (2-Speed):
  Low Gear – 81.44:1
  High Gear – 20.36:1
  Axle Gearing: 2.54:1

What’s Included

• HPI Venture18 U4 Flux Ford Bronco 4400 – Vaughn Gittin Jr. RTR

• TF-706 2.4GHz Radio Transmitter

• 600mAh 7.4V LiPo Battery

• USB Balance Charger

• Instruction Manual

What You Need

• 4x AA Batteries for Transmitter

• Optional: LiPo Charging Safety Case
