Quick Facts
The Occre 1/24 Lisboa Tram is an unassembled wooden and metal model kit featuring 824 precision parts designed for intermediate modelers. Delivering approximately 100 hours of engaging assembly, this G-45 gauge replica captures Lisbon’s historic 1936 Carris 701–735 series streetcar complete with authentic cambered roof geometry, detailed bogie mechanics, and interior seating.
What historical streetcar inspired the Occre Lisboa Tram kit?
The Occre Lisboa Tram is an authentic historical replica of the 701–735 series built by the Compañía de Carris de Ferro de Lisboa between 1936 and 1940. Engineered to conquer Lisbon’s formidable topography, these streetcars earned a reputation as the safest in the fleet thanks to a reinforced assembly of five independent braking systems—pneumatic, mechanical, electric, shoe-electromagnetic, and shoe-mechanical.
Assigned to the city's steepest lines (Routes 12, 25, and the iconic 28), these trams conquered gradients reaching 12%, among the steepest continuous slopes in the world operated purely by adhesion. Driven by dual 45-horsepower Metropolitan Vickers electric motors resting on a classic Maley & Tauton Brill 21-E truck, the distinctive curved-camber design remains a symbol of Lisbon public transit.
What materials and components are included in the Occre Lisboa Tram kit?

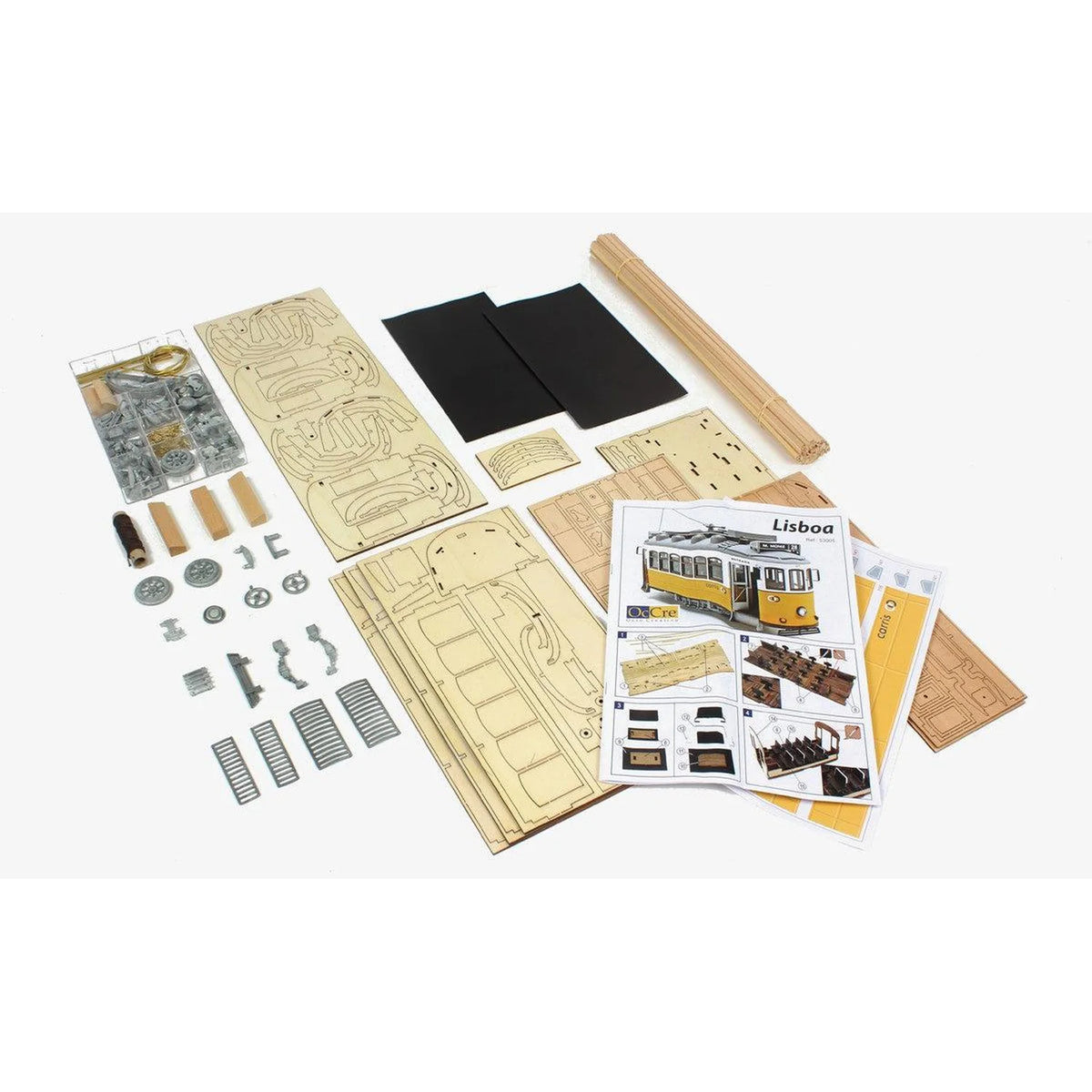

The Occre Lisboa Tram kit includes laser-cut fine hardwoods, die-cast zamak structural fittings, high-precision photo-etched brass frets, and textile rigging elements. The combination of natural grain timber for the passenger cabin and solid cast metal running gear ensures durability, weight, and authentic historical detail.
-

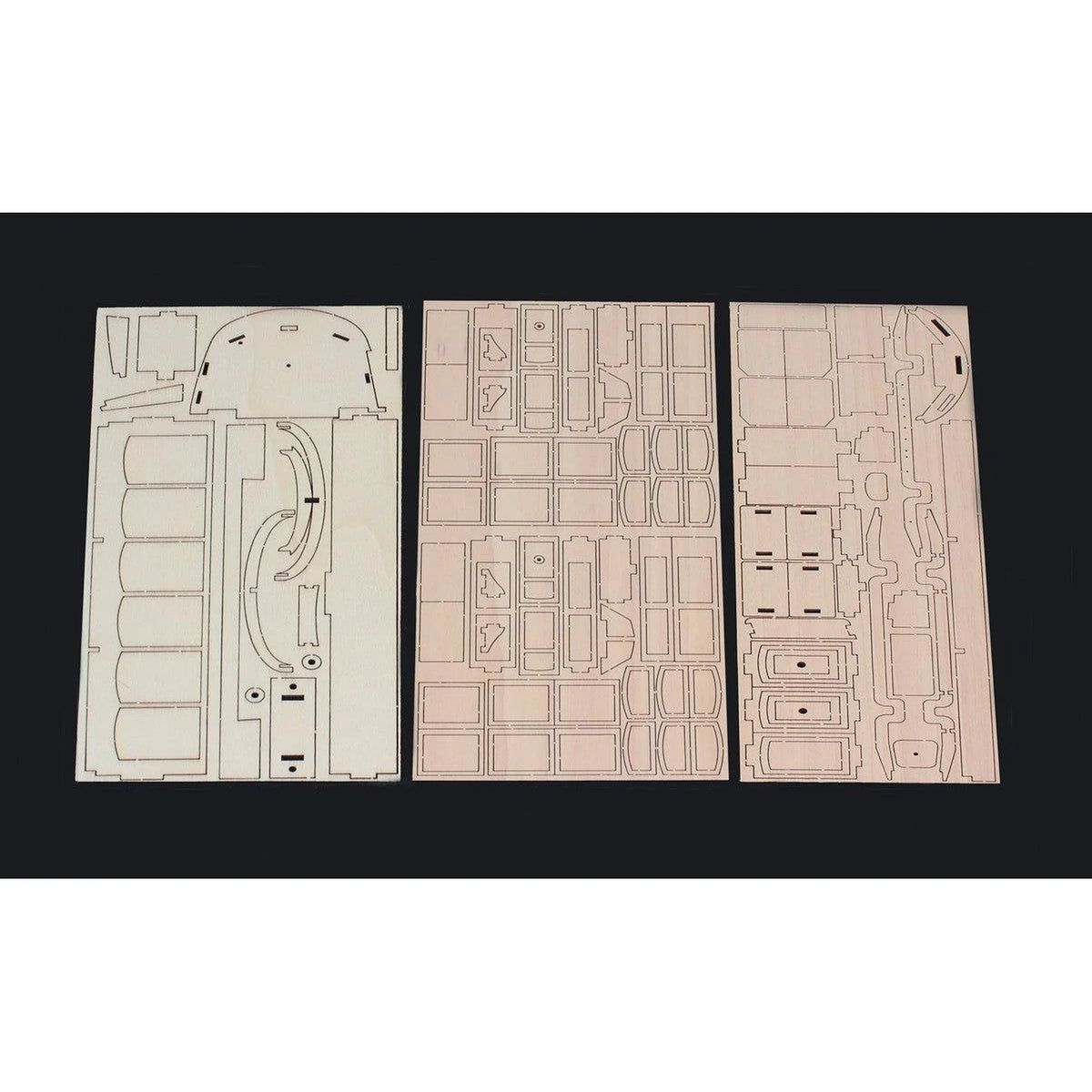

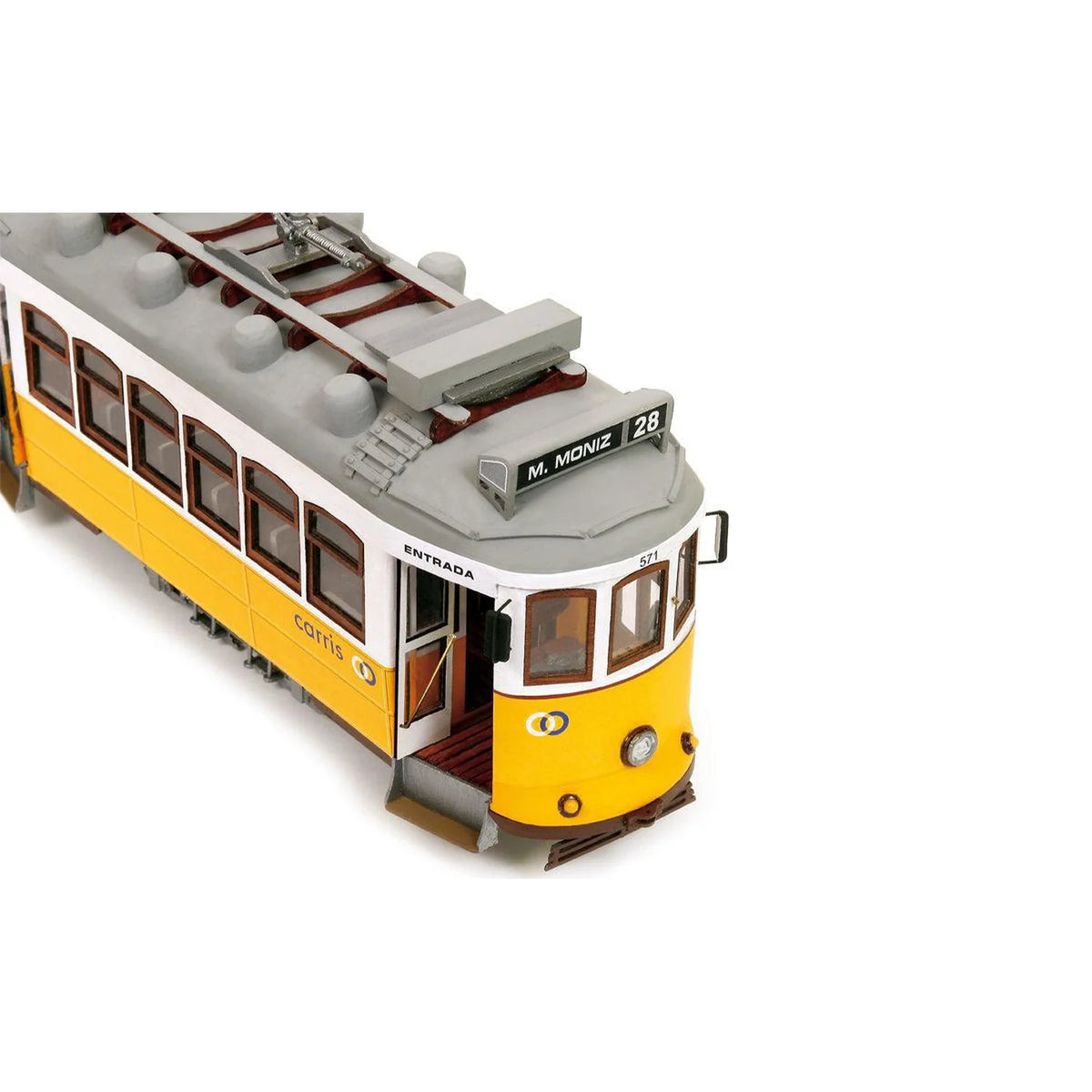

Laser-Cut Hardwoods: Multi-species wood sheets precision-cut to shape the main passenger body, arched window frames, curved roof ribbing, and interior floorboards.
-

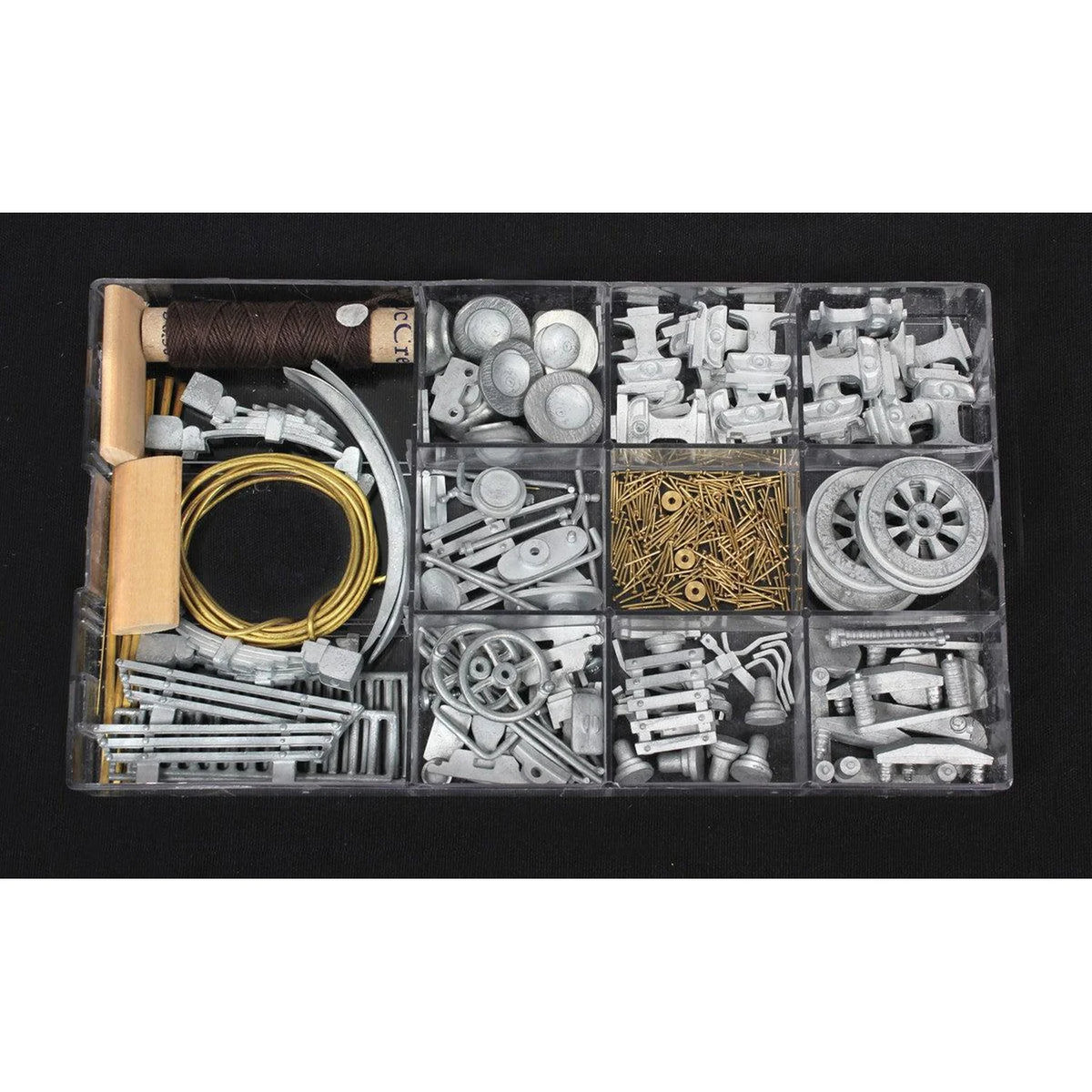

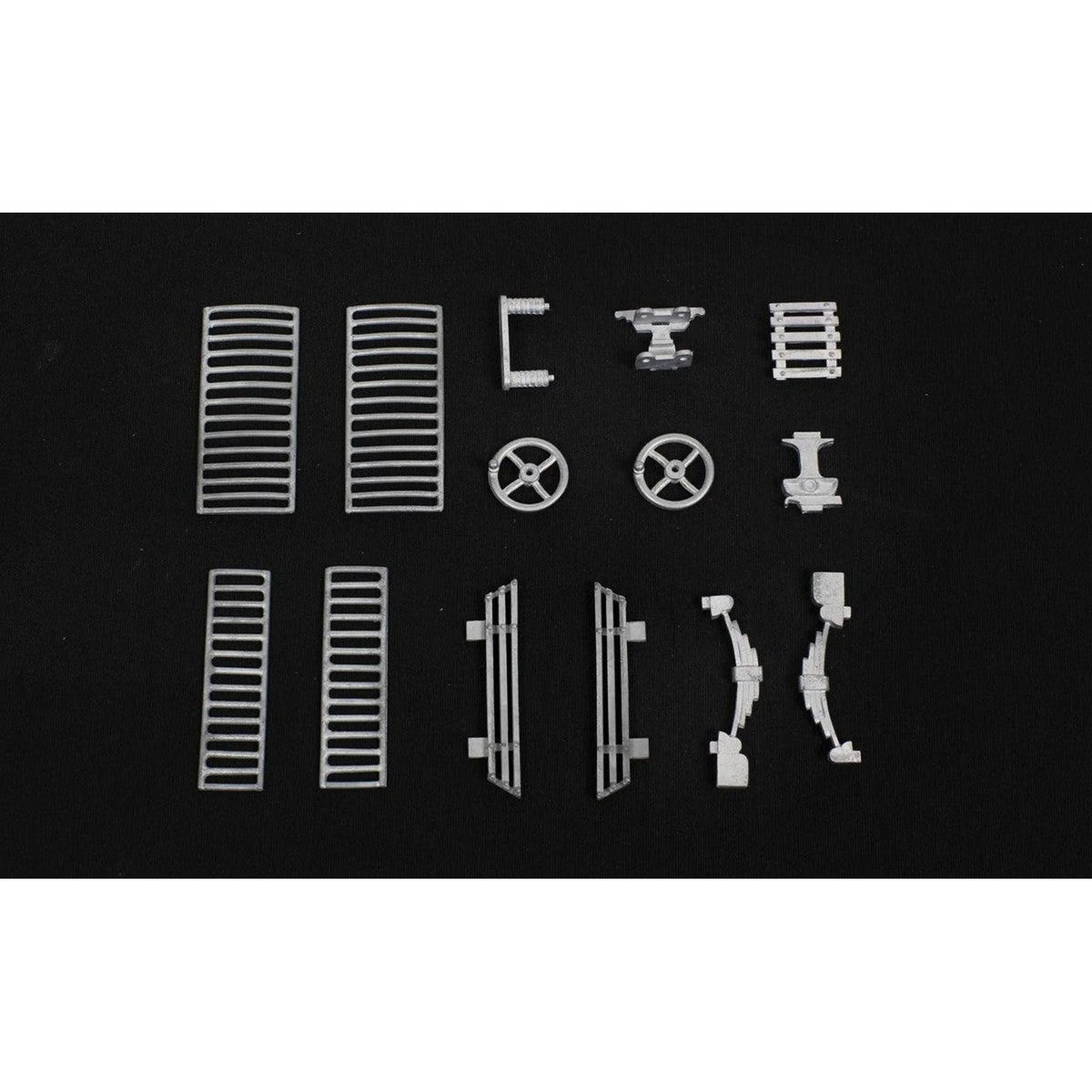

Die-Cast Zamak Metal: Detailed running gear, authentic Brill 21-E truck sideframes, wheel sets, brake apparatus, buffer steps, and wheel controllers.
-
Photo-Etched Brass: Ultra-fine brass details for passenger railings, route signage brackets, destination roof boxes ("M. MONIZ 28"), and electrical pole connectors.
-
Textile & Clear Glazing: Multi-gauge thread cordage for functional roof trolley-pole tensioning and pre-cut clear window glazing.
-
Factory-Sealed Security: Shipped in a shrink-wrapped collector box measuring 458 × 230 × 60 mm (18.03 × 9.06 × 2.36 in), ensuring pristine, factory-sealed parts delivery.
How difficult is the Occre 1/24 Lisboa Tram to assemble?
The Occre Lisboa Tram is rated at an intermediate difficulty level, requiring roughly 100 hours of construction time guided by full-color photographic instructions. Unlike complex multi-masted ship rigging, this transit model focuses on precise joinery, curved timber planking around the cambered roof, and detailed paint finishing.
-
Digital Assembly Instructions: Access comprehensive step-by-step guides illustrating sub-assemblies from the bottom truck to the overhead pantograph trolley pole.
Technical Specifications
|
Specification
|
Detail
|
|
Brand
|
Occre
|
|
Model
|
Lisboa Tram (Series 701–735)
|
|
Model Number
|
53005
|
|
Scale
|
1:24
|
|
Track Gauge
|
G-45 (45 mm standard garden railway gauge)
|
|
Parts Count
|
824
|
|
Skill / Difficulty Level
|
Intermediate
|
|
Estimated Build Time
|
100 Hours
|
|
Finished Length
|
360 mm (14.17 in)
|
|
Finished Width
|
100 mm (3.94 in)
|
|
Finished Height
|
220 mm (8.66 in / 8.7 in)
|
|
Packaging Dimensions
|
458 × 230 × 60 mm (18.03 × 9.06 × 2.36 in)
|
|
Primary Materials
|
Hardwoods, Photo-Etched Brass, Zamak Metal, Cotton Thread
|
What tools and companion supplies are recommended for this build?
To assemble and finish the Lisboa Tram to collector standards, crafters need wood PVA glue, cyanoacrylate (medium CA), micro-clamps, a fine razor saw, and finishing sanding sponges.
-
Dedicated Color Pack: Achieve the iconic Carris livery with the Occre 90535 Lisboa Tram Acrylic Paint Pack, featuring factory-matched Lisboa yellow, pure white, roof grey, and dark chassis tones.
-

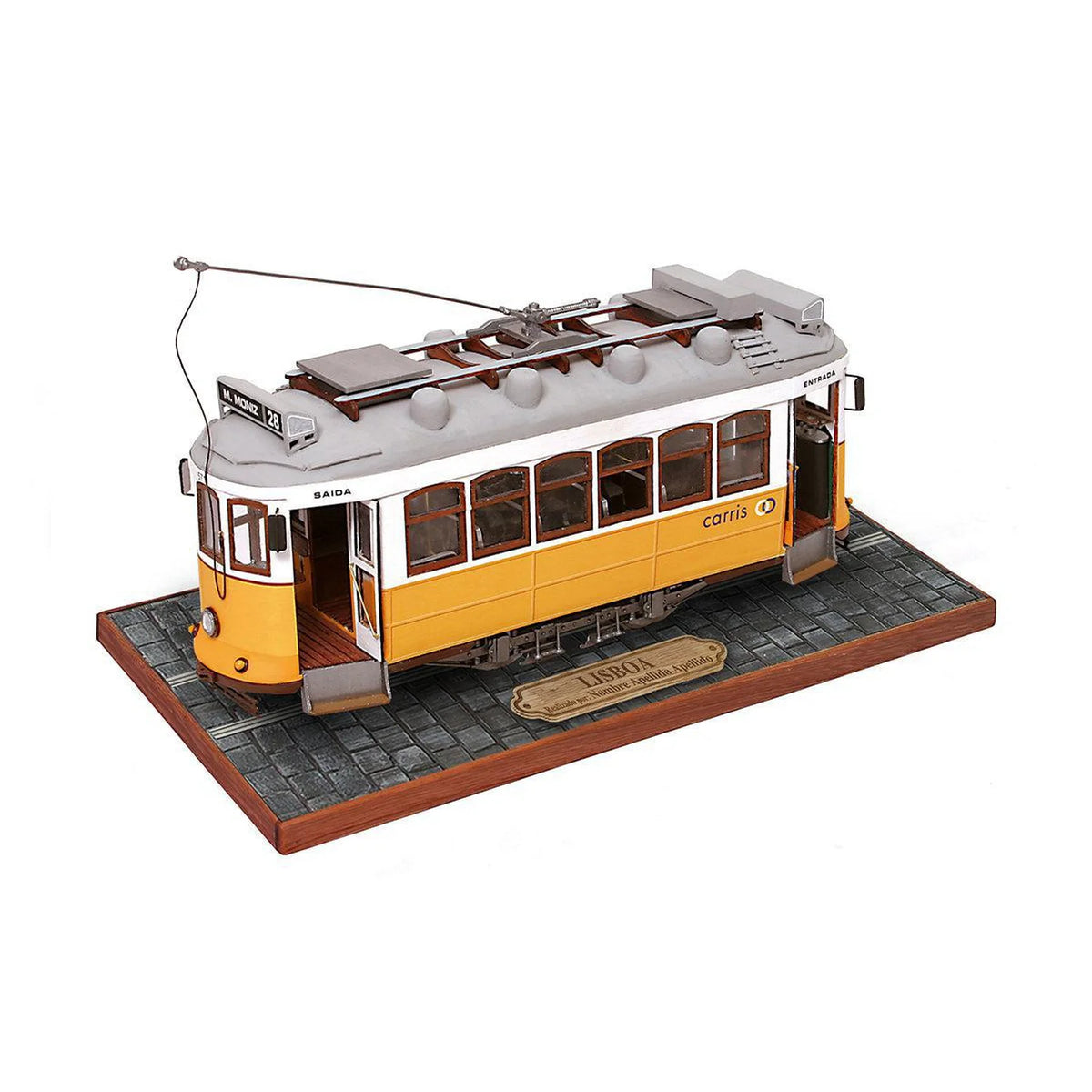

Streetcar Diorama Display: Display your finished model on the matching cobblestone Occre 53005D Lisboa Cobblestone Track Diorama Base or the Occre 55100 Tram Stand Base.
-
Scenic Detailing: Enhance the curbside diorama with Gamers Grass tufts, cobblestone weathering powders, and scenic street scatter around the embedded rails.
-
Workspace Organization: Keep all 824 wood and metal components organized during the 100-hour assembly using the modular Occre Workshop Cabinet (SKU 19110).
